Offer our customers process calculation, drawing, finish product testing, inspection, installation guide and start-up sevice

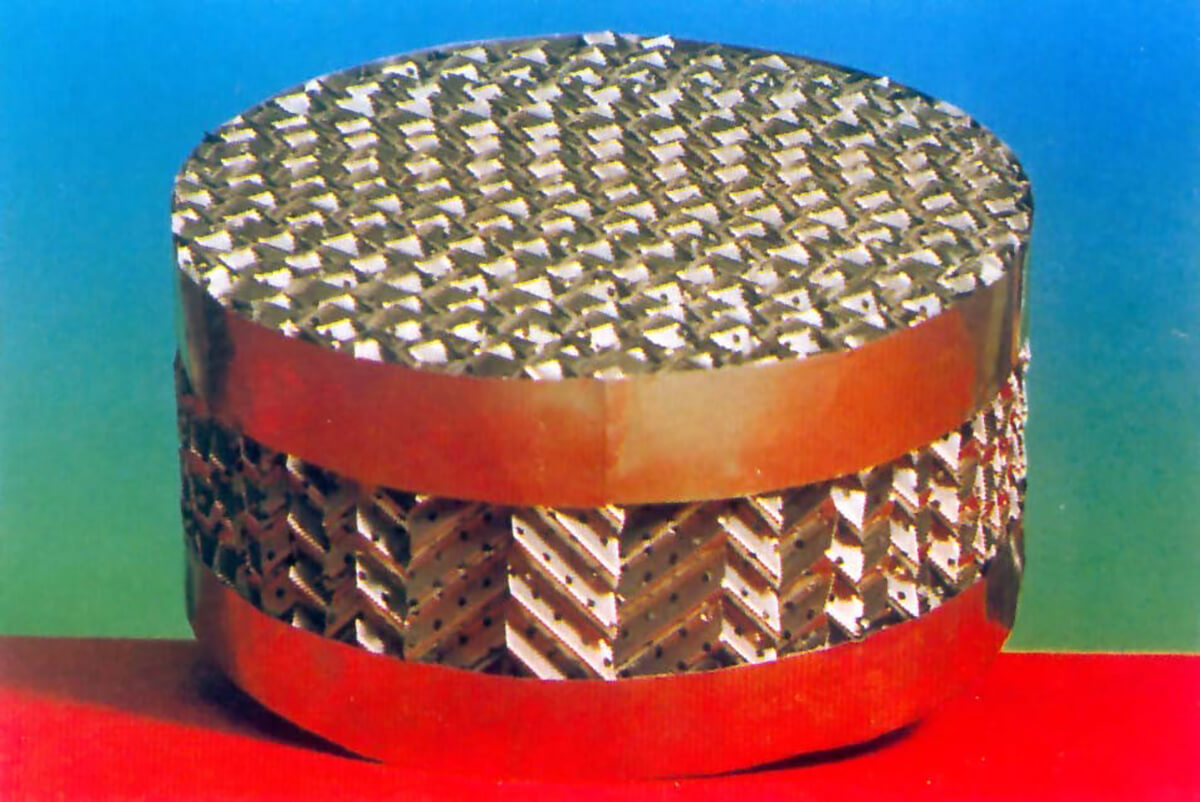

Metal Plate Structured Packing optimize the liquid flow. It removed the contradiction between the efficiency and flux. In comparison with conventional packing, the separation efficiency was raised by 10% about, the flux was increased by 20%, and the pressure drop was decrease by over 30%.
|
Type |
Theoretical plate |
Void fracion |
Specific surface m2/m3 |
Pressure drop KPa/m |
Bulk density kg/m3 |
Liquid load m3/m2×hr |
Max F factor |
材质 |
|
KWT-500X |
2.8-3.2 |
93 |
500 |
0.18 |
170-200 |
0.2-100 |
2.0 |
不锈钢 |
|
KWT-350X |
2.3-2.8 |
95 |
350 |
0.13 |
240-280 |
0.2-100 |
2.2 |
不锈钢 |
|
KWT-250X |
1.6-2.0 |
97 |
250 |
0.18 |
170-200 |
0.2-100 |
2.8 |
不锈钢 |
|
KWT-125X |
0.8-0.9 |
98.5 |
125 |
0.14 |
85-100 |
0.2-100 |
3.5 |
不锈钢 |
|
KWT-500Y |
4.0-4.5 |
93 |
500 |
0.3 |
170-200 |
0.2-100 |
1.8 |
不锈钢 |
|
KWT-350Y |
3.5-4.0 |
95 |
350 |
0.2 |
240-280 |
0.2-100 |
2.0 |
不锈钢 |
|
KWT-250Y |
2.0-3.0 |
97 |
250 |
0.3 |
170-200 |
0.2-100 |
2.6 |
不锈钢 |
|
KWT-125Y |
1.0-1.2 |
98.5 |
125 |
0.2 |
85-100 |
0.2-100 |
3.0 |
不锈钢 |

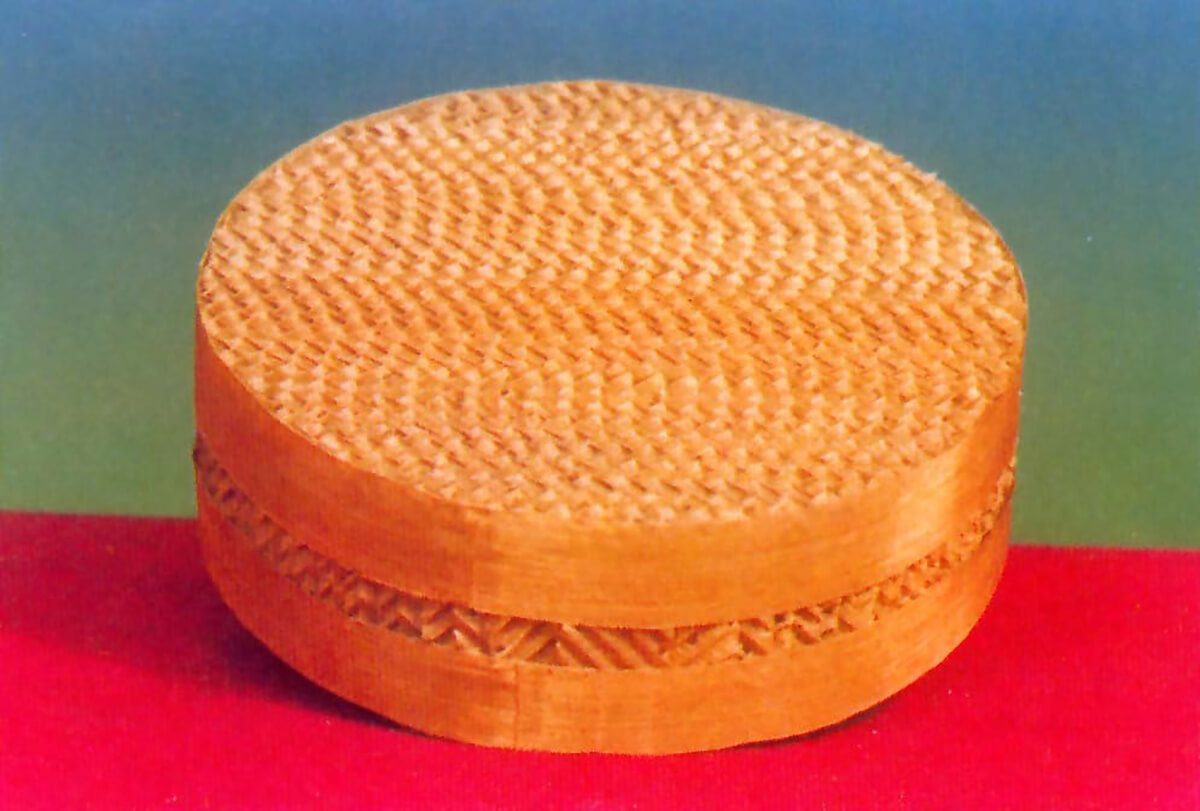

Metal Wire Gauze Structured Packing can meet the demands of accurate, larger, high vacuum rectification. It is suitable for the hard separation system, thermosensitive system and processes requiring high purity.
|
Type |
Theoretical plate |
Void fracion |
Specific surface m2/m3 |
Pressure drop KPa/m |
Bulk density kg/m3 |
Liquid load m3/m2×hr |
Max F factor |
材质 |
|
KWT-Ⅰ |
8-10 |
87 |
700 |
0.46-0.66 |
180 |
0.2-20 |
1.3-2.4 |
不锈钢 |
|
KWT-Ⅱ |
4-5 |
95 |
500 |
0.197 |
140 |
0.2-20 |
2.4 |
不锈钢 |
|
KWT-Ⅲ |
2.3-3 |
97 |
250 |
0.105 |
70 |
0.2-20 |
3.5 |
不锈钢 |

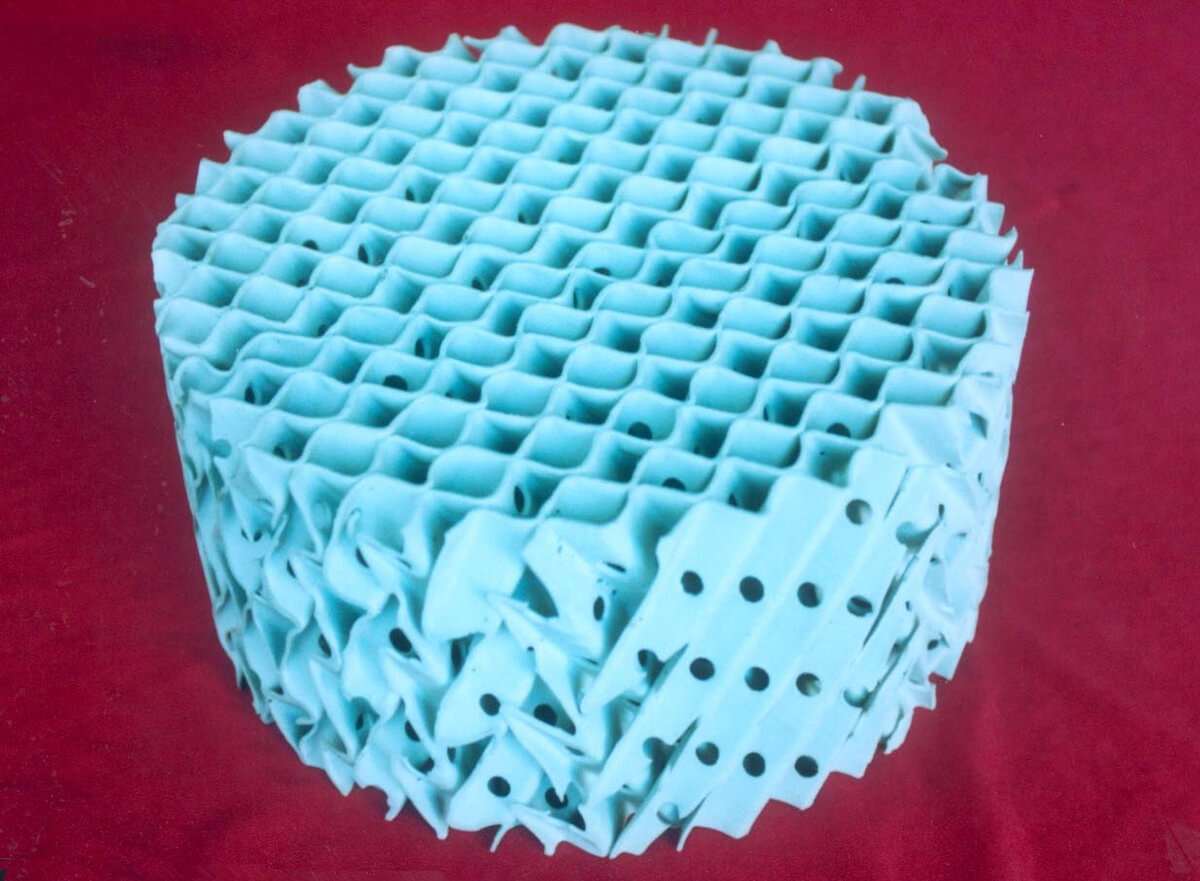

Ceramic and Plastic Structured Packing is acid-resistant, Besides excellent characteristics of metal structured Packing.

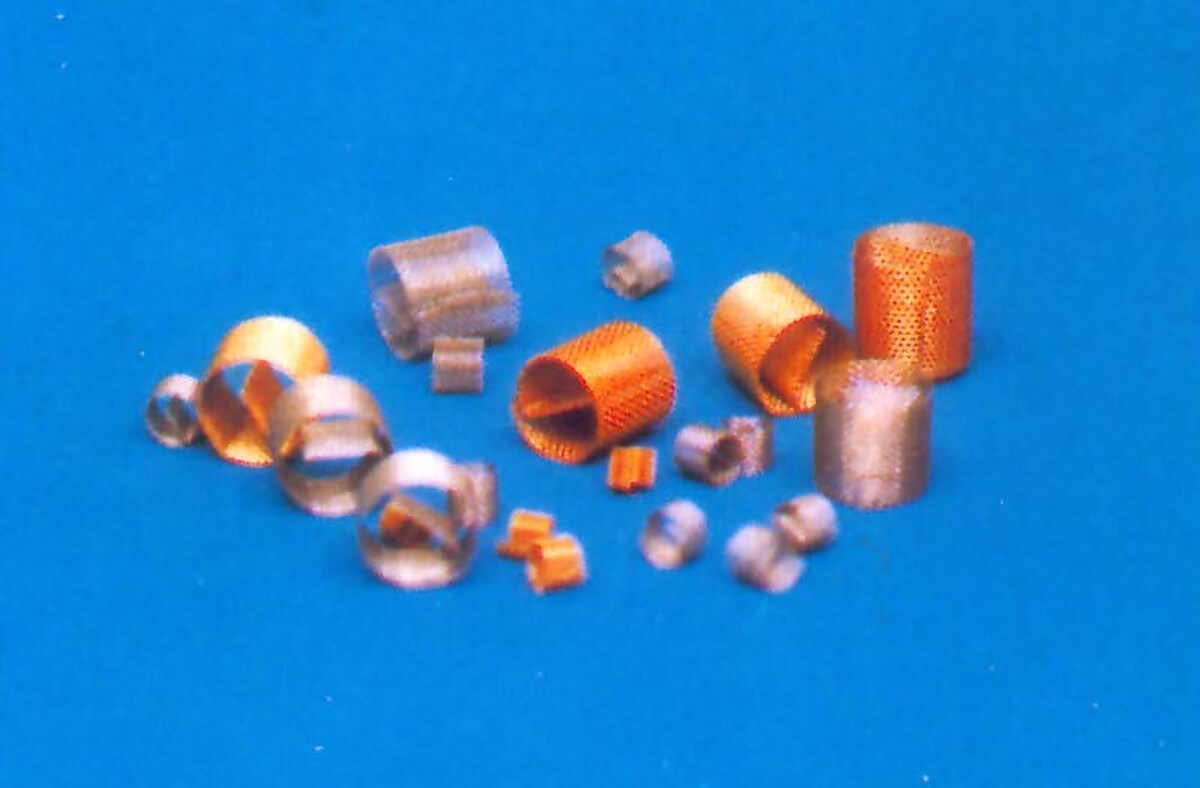

Dixon Ring

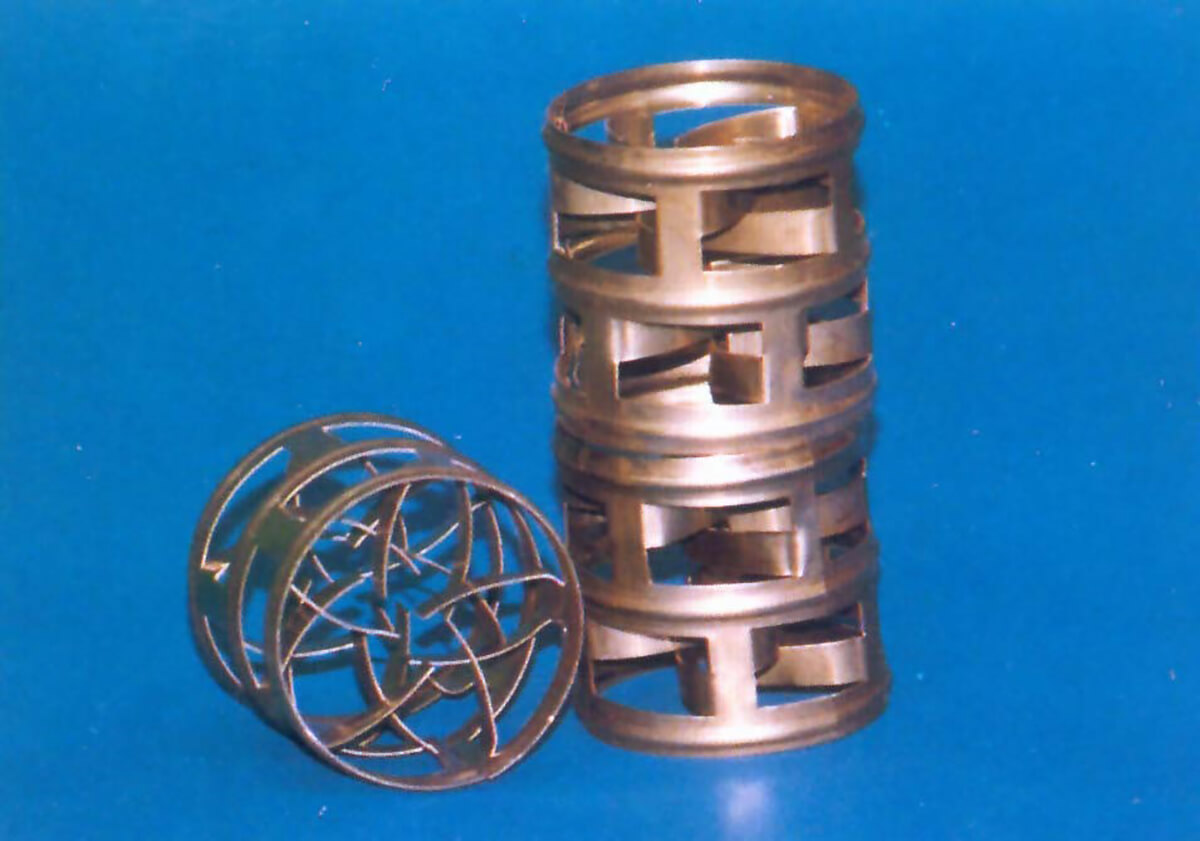

Metal Pall Ring

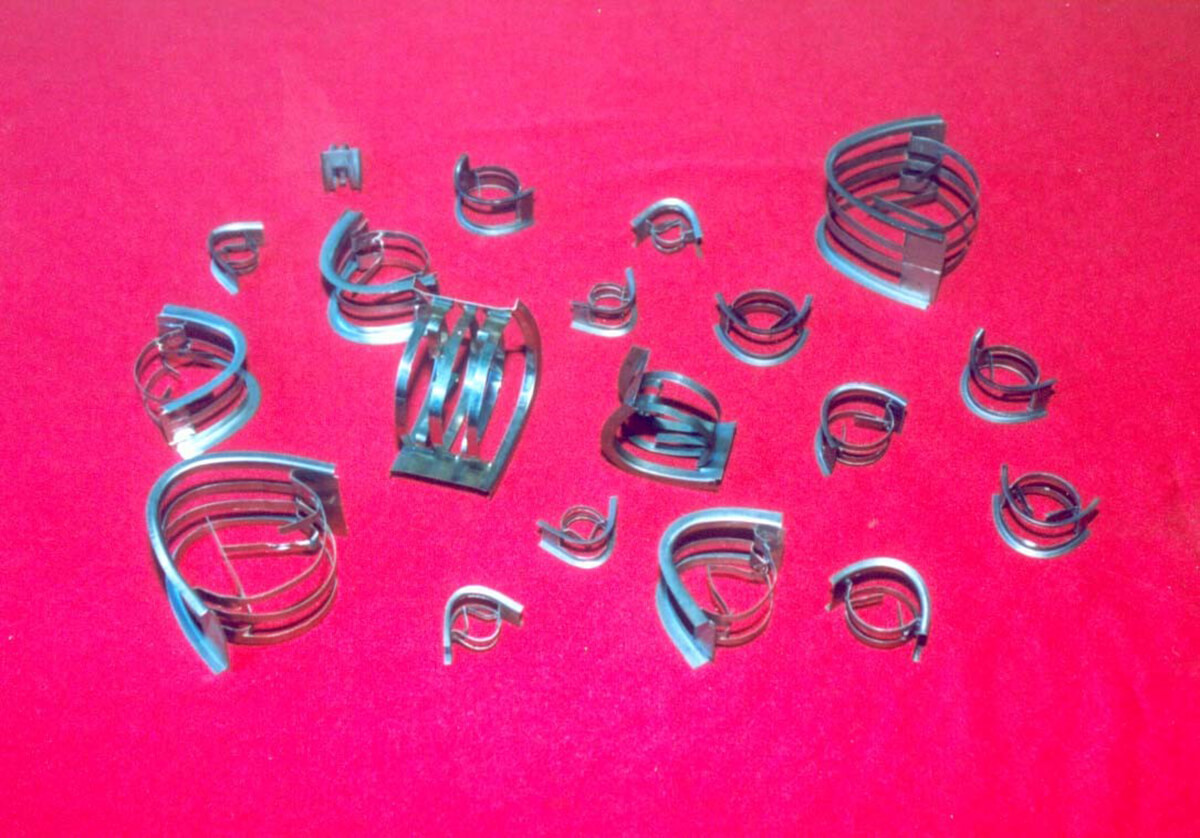

IMTP
